Document Settings

General Settings

DSP Use

Configures the amount of DSP resources reserved for delay equalization of audio paths. This is a user selectable slider. When set as Aggressive the DSP will reserve the less resources to delay compensation. When set to Conservative the DSP will reserve more resources to delay compensation.

Delay Equalization

The Delay Equalization paths are chosen with radio buttons:

• Global - All signal paths in the system will have same latency from input to output.
• Per Partition – Audio paths within each audio partition will have the same latency from input to output. Latency may vary from partition to partition.
• Smart – the software analyzes DSP groups and applies Delay Equalization to those found to have interdependencies.

Server Mode

Defines the compiler rules for the Hardware that should be used to calculate the layout resources. Please note that if audio expanders are required then this will be included by default as long as a suitable TesiraFORTÉ, SERVER or SERVER IO device is available as a proxy.

• TesiraFORTÉ only - The compiler will only consider TesiraFORTÉ devices in its DSP calculations and Equipment table allocation.
• Tesira Servers Only - The compiler will only consider Tesira SERVER and SERVER IO devices in its DSP calculations and Equipment table allocation.
• Both Tesira Servers and TesiraFORTÉ - The compiler will consider TesiraFORTÉ, SERVER and SERVER IO devices in its DSP calculations and Equipment table allocation.

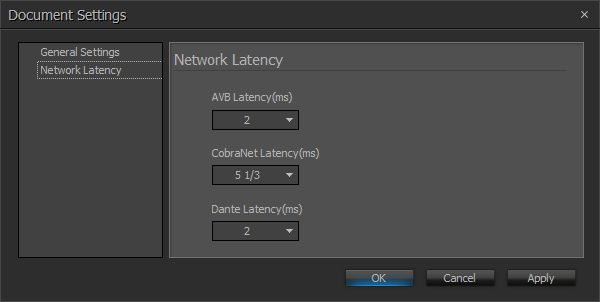

Network Latency

Sets the latency of the AVB and CobraNet audio transports.

• AVB Latency can be set at 1ms or 2 ms.
• CobraNet Latency can be 5 1/3 ms (default) , 2 1/3 ms or 1 1/3 ms.
• Dante Latency can be set at 1ms or 2ms.
